| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Ta), 85A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 100 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6300 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 83W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

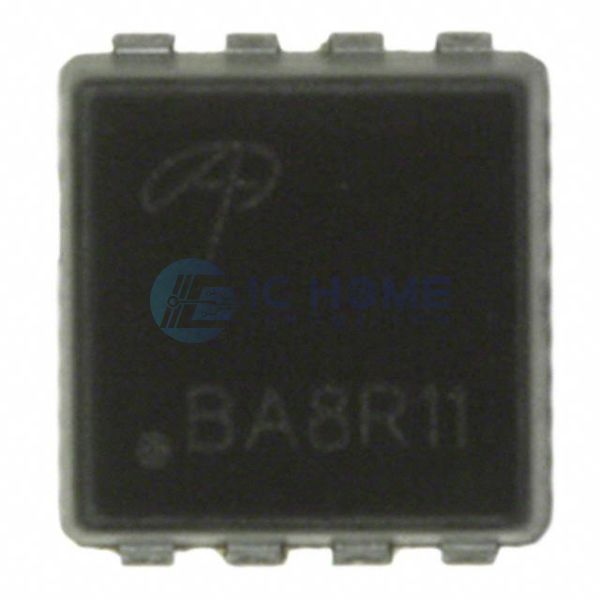

| Supplier Device Package | 8-DFN (5x6) |
| Package / Case | 8-PowerSMD, Flat Leads |
