| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Ta), 90A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 1.5mOhm @ 38A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 81 nC @ 10 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 5118 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.3W (Ta), 89W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

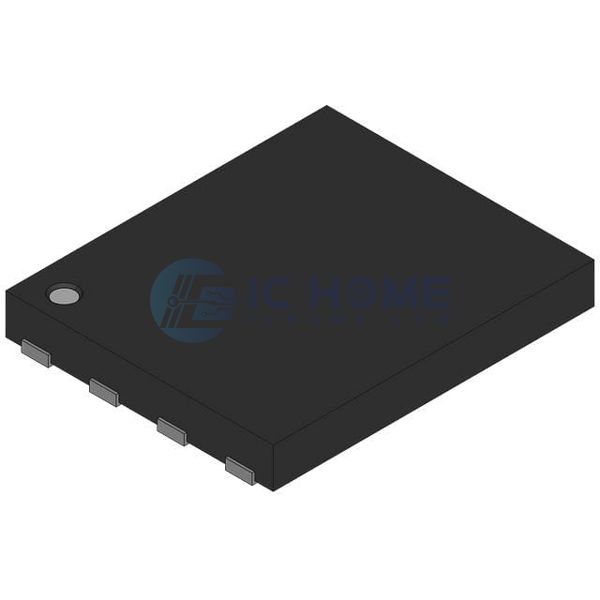

| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerTDFN |
