| Name | Value |
|---|---|
| Product Status | Active |

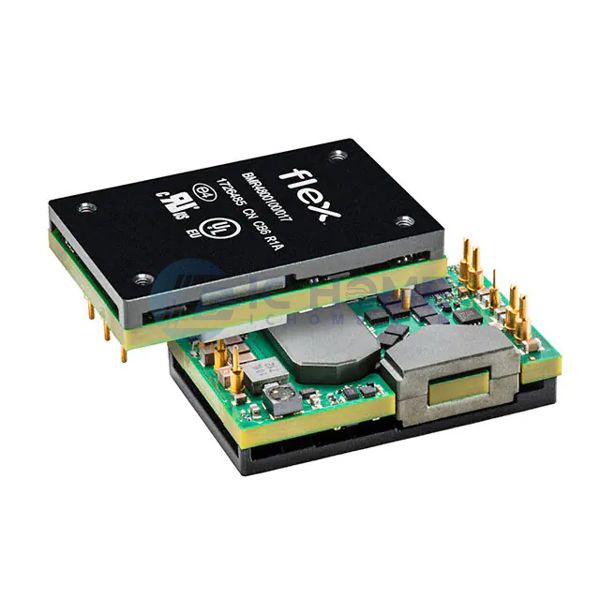

| Type | Intermediate Bus Converter, Digital |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 45V |
| Voltage - Input (Max) | 56V |
| Voltage - Output 1 | 10.4V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 96.2A |
| Power (Watts) | 1000 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, Remote On/Off |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Efficiency | 97.3% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CB, CSA, IEC, TUV, UL |
| Standard Number | 62368-1 |
