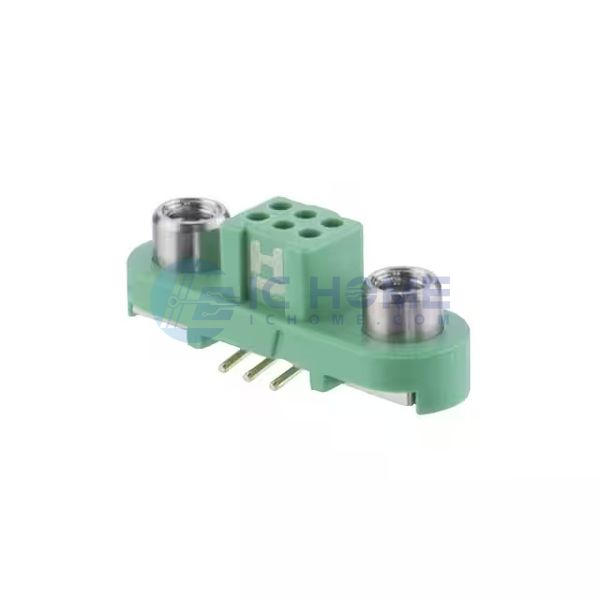

| Name | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.049" (1.25mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.049" (1.25mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Insulation Color | Green |
| Insulation Height | 0.207" (5.25mm) |
| Contact Length - Post | - |
| Operating Temperature | -65°C ~ 150°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | 7.33mm, 7.4mm |
| Ingress Protection | - |
| Features | Mating Flange, Pick and Place, Polarizing Key |
| Current Rating (Amps) | 2A |
| Voltage Rating | 450V |
