| Name | Value |
|---|---|
| Product Status | Active |

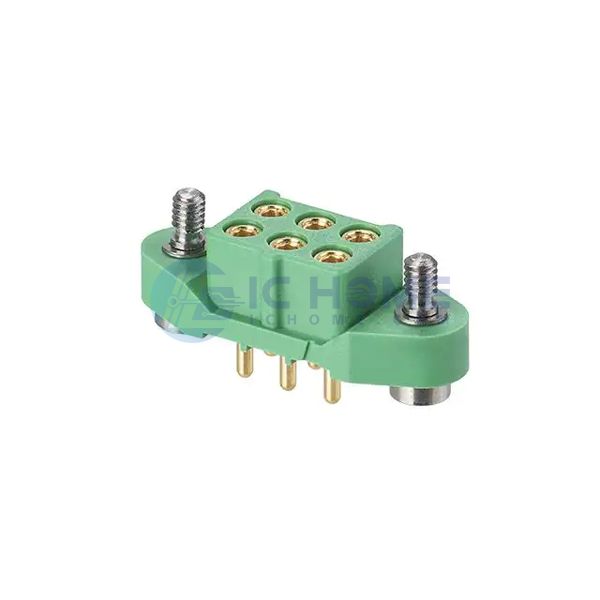

| Connector Type | Receptacle |
| Contact Type | Female Socket, Power |
| Style | Board to Board or Cable |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.118" (3.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.118" (3.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
| Insulation Color | Green |
| Insulation Height | 0.256" (6.50mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Operating Temperature | -65°C ~ 175°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | - |
| Mated Stacking Heights | 8.9mm |
| Ingress Protection | - |
| Features | Jackscrews, Polarizing Key |
| Current Rating (Amps) | 10A |
| Voltage Rating | 600V |
