| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 190mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.8V, 10V |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 190mA, 10V |
| Vgs(th) (Max) @ Id | 2V @ 130µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.1 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 104 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

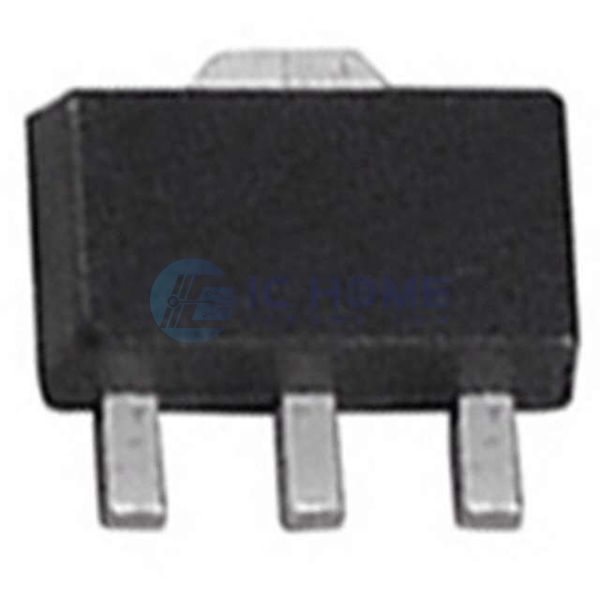

| Supplier Device Package | PG-SOT89 |
| Package / Case | TO-243AA |
