| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 24.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 13V |
| Rds On (Max) @ Id, Vgs | 190mOhm @ 6.2A, 13V |
| Vgs(th) (Max) @ Id | 3.5V @ 510µA |
| Gate Charge (Qg) (Max) @ Vgs | 47.2 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1137 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 152W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

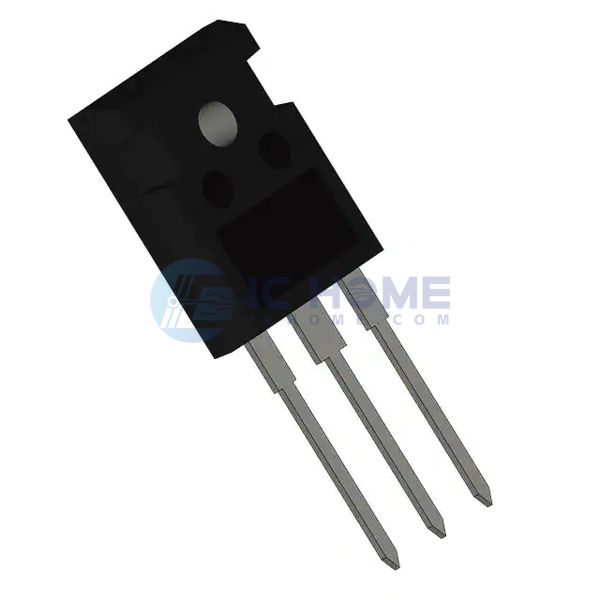

| Supplier Device Package | PG-TO247-3-41 |
| Package / Case | TO-247-3 |
