| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 13A (Ta), 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.3mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1320 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

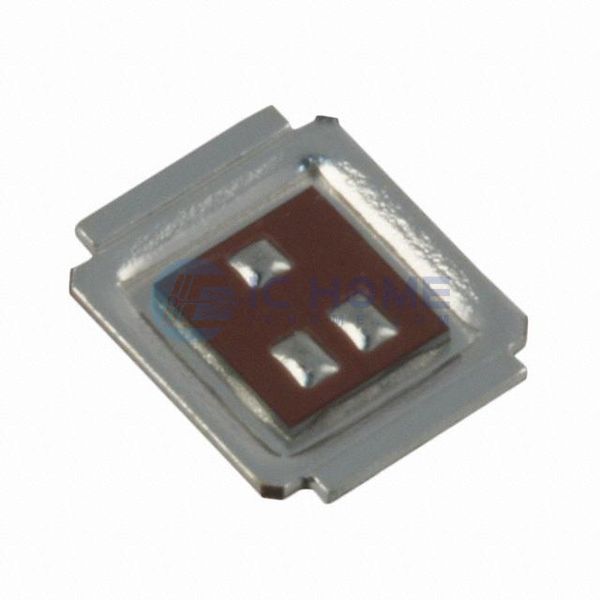

| Supplier Device Package | DIRECTFET™ ST |
| Package / Case | DirectFET™ Isometric ST |
