| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 93A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 56A, 10V |
| Vgs(th) (Max) @ Id | 3.6V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 54 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2160 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

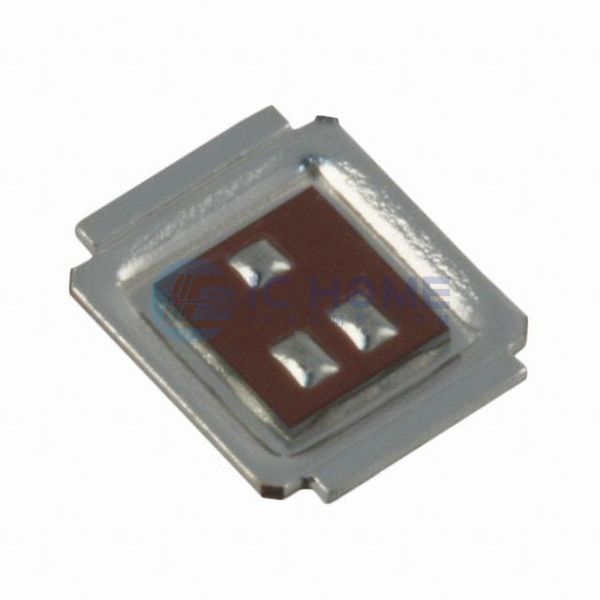

| Supplier Device Package | DIRECTFET™ MN |
| Package / Case | DirectFET™ Isometric MN |
