| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 1.15mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.35V @ 150µA |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 7174 pF @ 13 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |

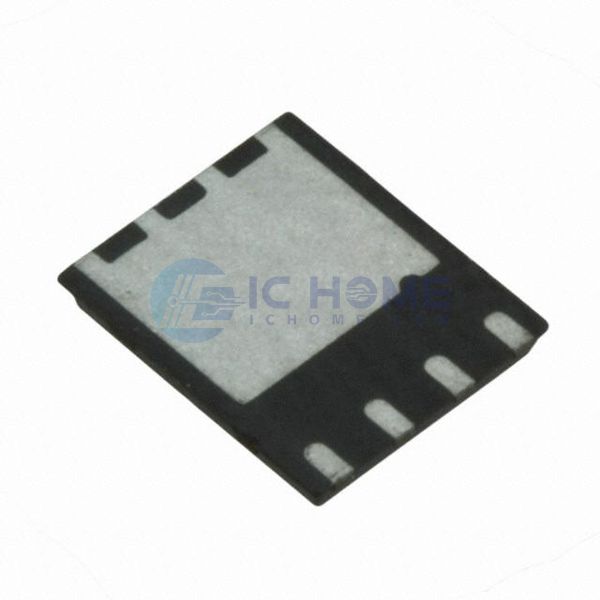

| Supplier Device Package | 8-PQFN (5x6) |
| Package / Case | 8-PowerVDFN |
