| Name | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 11 A |
| Current - Collector Pulsed (Icm) | 22 A |
| Vce(on) (Max) @ Vge, Ic | 4.3V @ 15V, 5A |
| Power - Max | 60 W |
| Switching Energy | 450µJ (on), 440µJ (off) |
| Input Type | Standard |
| Gate Charge | 28 nC |
| Td (on/off) @ 25°C | 23ns/93ns |
| Test Condition | 960V, 5A, 50Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

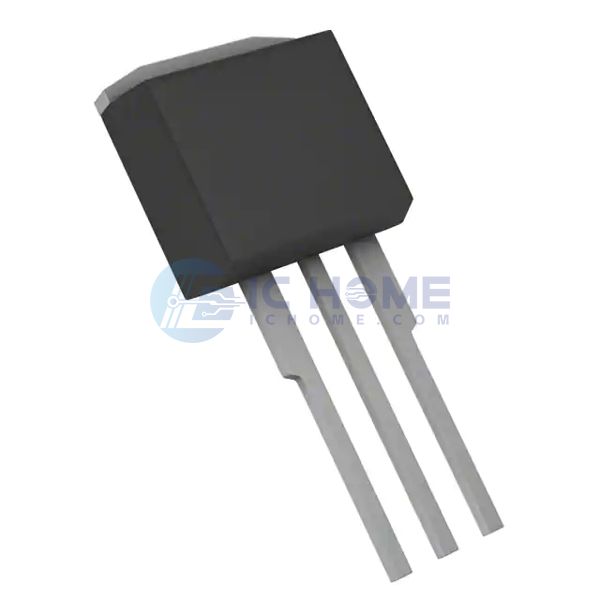

| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Supplier Device Package | TO-262 |
