| Name | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 14 A |
| Current - Collector Pulsed (Icm) | 18 A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 8A |
| Power - Max | 38 W |
| Switching Energy | 310µJ (on), 3.28mJ (off) |
| Input Type | Standard |
| Gate Charge | 15 nC |
| Td (on/off) @ 25°C | 76ns/815ns |
| Test Condition | 480V, 8A, 100Ohm, 15V |
| Reverse Recovery Time (trr) | 28 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

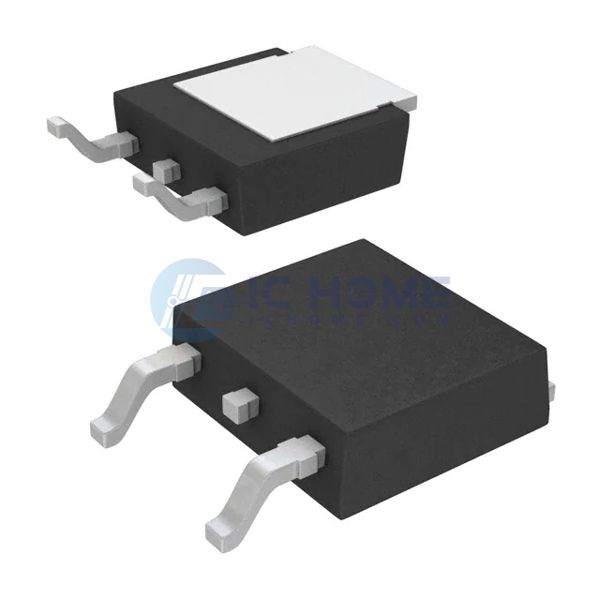

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | D-PAK (TO-252AA) |
