| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.7 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 670 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 47W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |

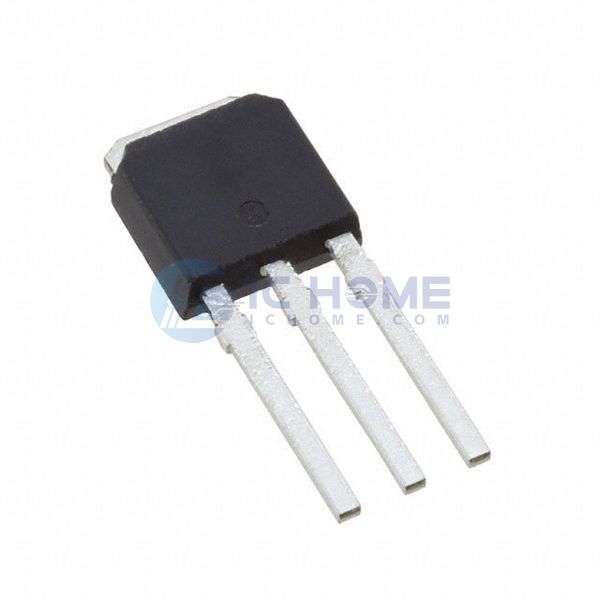

| Supplier Device Package | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
