| Name | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1050 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 150W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

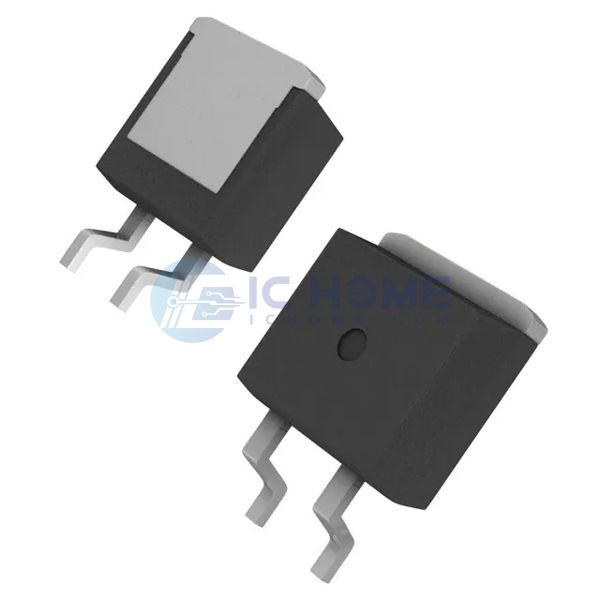

| Supplier Device Package | TO-263AA (IXFA) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
