| Name | Value |
|---|---|
| Product Status | Not For New Designs |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 10.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 160 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4200 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

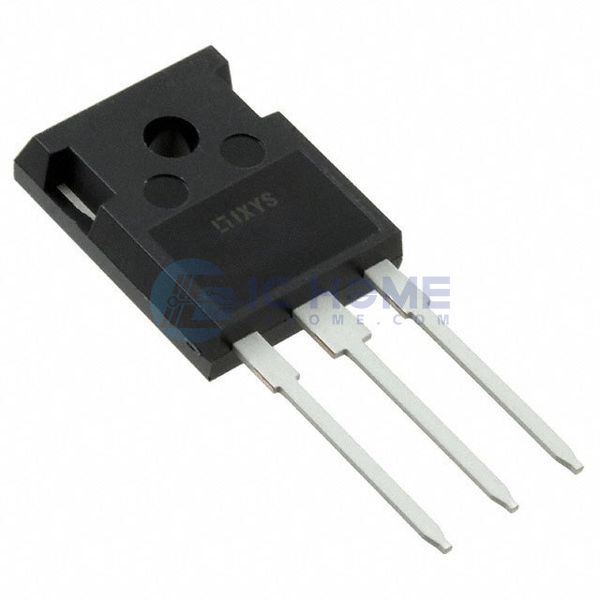

| Supplier Device Package | TO-247AD (IXFH) |
| Package / Case | TO-247-3 |
