| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1100 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 240mOhm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 6.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 350 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 23000 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 1000W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |

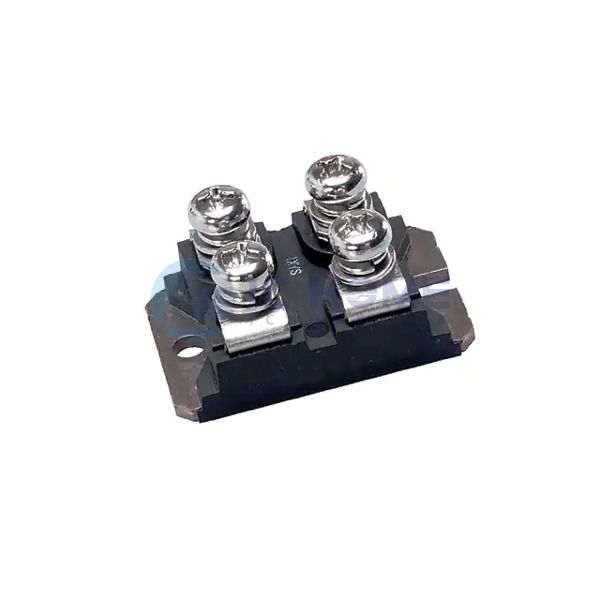

| Supplier Device Package | SOT-227B |
| Package / Case | SOT-227-4, miniBLOC |
