| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 800mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 5.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1050 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 150W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

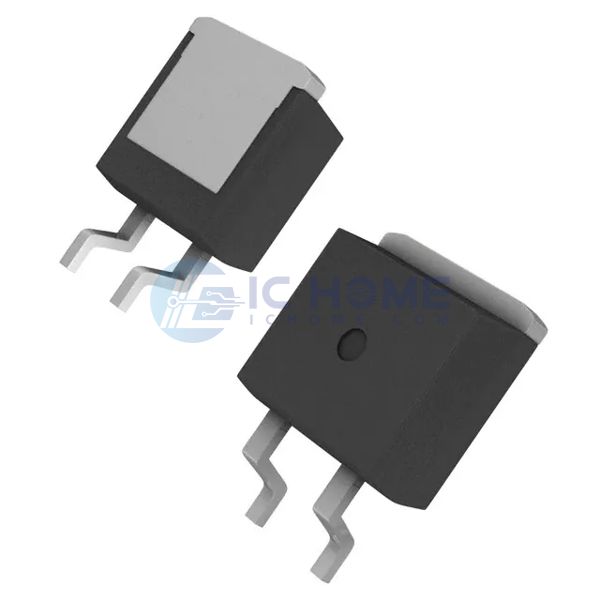

| Supplier Device Package | TO-263AA |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
