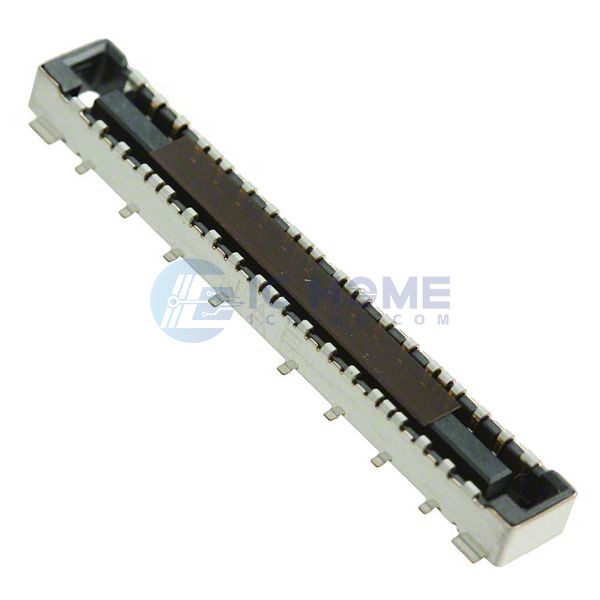

| Name | Value |
|---|---|
| Product Status | Obsolete |
| Connector Type | Receptacle |
| Contact Type | Center Strip Contact |
| Style | Board to Cable/Wire |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.020" (0.50mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Black |
| Insulation Height | 0.110" (2.79mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 4.5mm |
| Ingress Protection | - |
| Features | Board Guide, Pick and Place, Solder Retention |
| Current Rating (Amps) | 0.5A per Contact |
| Voltage Rating | - |
