| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 200mOhm @ 10A, 20V |
| Vgs(th) (Max) @ Id | 4V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 20 V |
| Vgs (Max) | +22V, -6V |
| Input Capacitance (Ciss) (Max) @ Vds | 890 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |

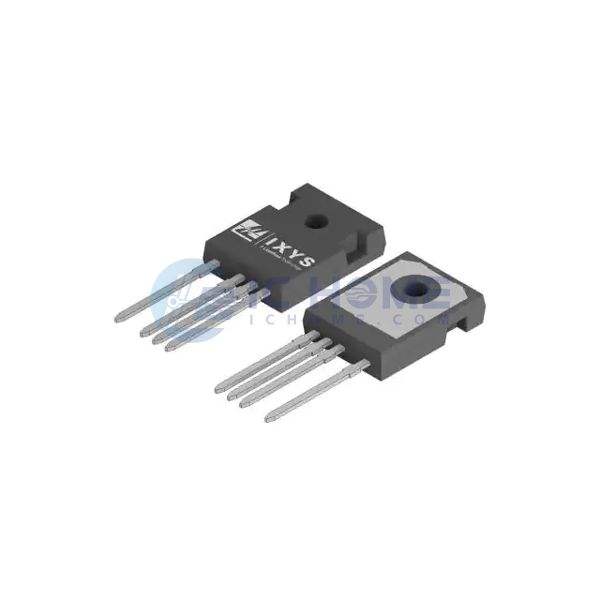

| Supplier Device Package | TO-247-4L |
| Package / Case | TO-247-4 |
