| Name | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - Off State | 200 V |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - On State (It (AV)) (Max) | 6.4 A |
| Current - On State (It (RMS)) (Max) | 10 A |
| Current - Hold (Ih) (Max) | 6 mA |
| Current - Off State (Max) | 5 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |

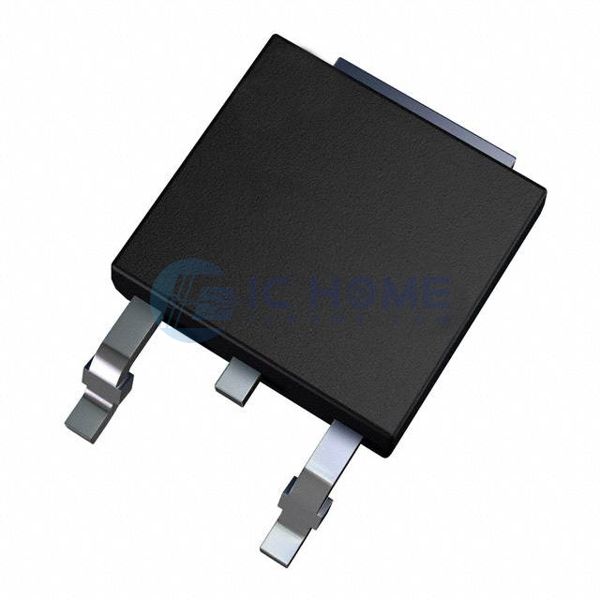

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252, (D-Pak) |
