| Name | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Voltage - Off State | 1 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - On State (It (AV)) (Max) | 3.8 A |
| Current - On State (It (RMS)) (Max) | 6 A |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Off State (Max) | 20 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole |

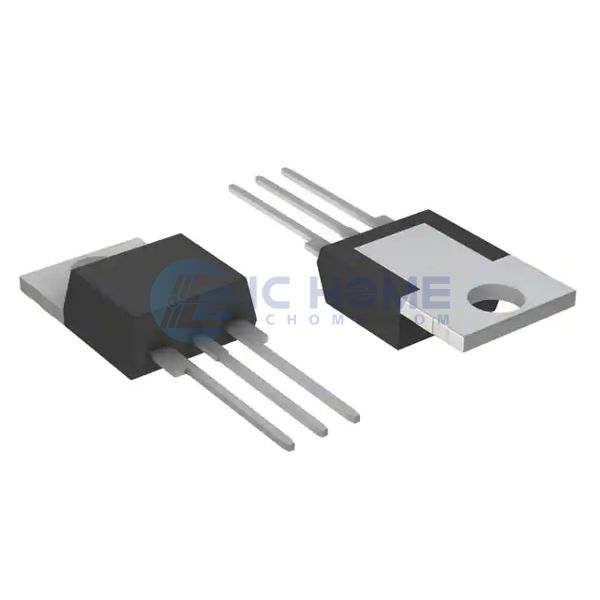

| Package / Case | TO-220-3 Isolated Tab |
| Supplier Device Package | TO-220 Isolated Tab |
