| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 95A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 35.2A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 3.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 320 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 8140 pF @ 25 V |
| FET Feature | Super Junction |
| Power Dissipation (Max) | 833W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

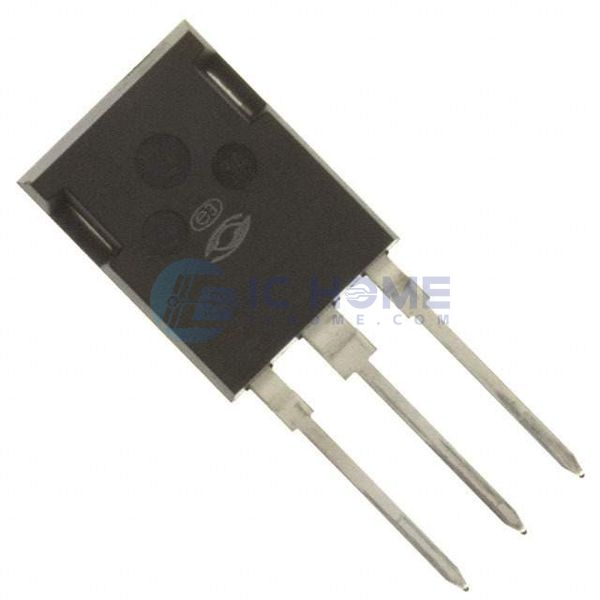

| Supplier Device Package | T-MAX™ [B2] |
| Package / Case | TO-247-3 Variant |
