| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 58A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 65mOhm @ 42A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA |
| Gate Charge (Qg) (Max) @ Vgs | 340 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 10800 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 543W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |

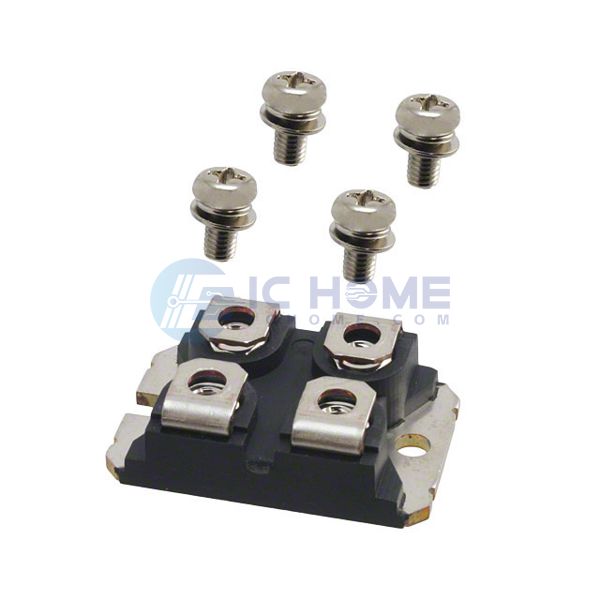

| Supplier Device Package | SOT-227 |
| Package / Case | SOT-227-4, miniBLOC |
