| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 380 pF @ 10 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 520mW (Ta), 8.3W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |

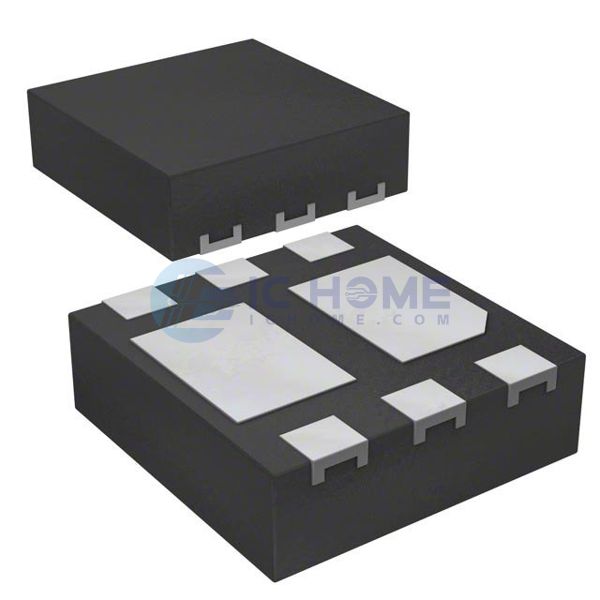

| Supplier Device Package | 6-HUSON (2x2) |
| Package / Case | 6-UDFN Exposed Pad |
