| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 480mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 850mOhm @ 400mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.14 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 87 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 250mW (Ta), 770mW (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

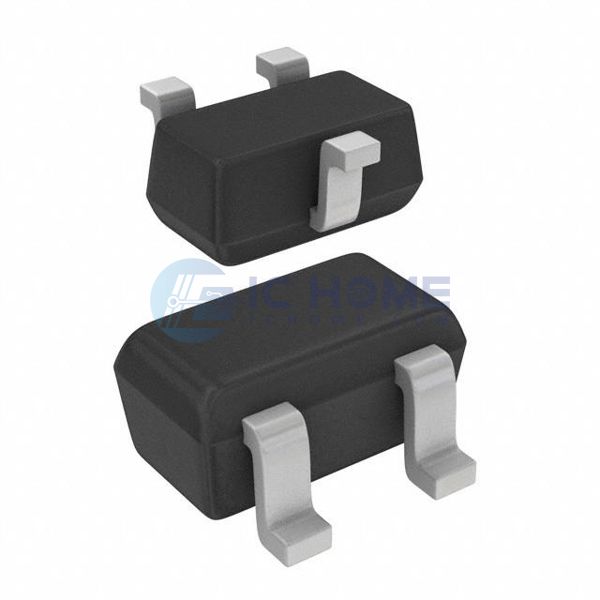

| Supplier Device Package | SC-75 |
| Package / Case | SC-75, SOT-416 |
