| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 38A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 39mOhm @ 19A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 80 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4360 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.65W (Ta), 65W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |

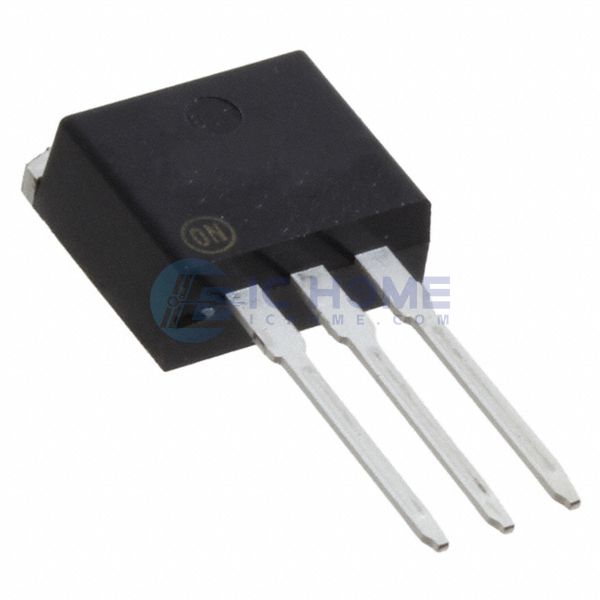

| Supplier Device Package | TO-262-3 |
| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
