| Name | Value |
|---|---|
| Product Status | Obsolete |
| Voltage - Off State | 600 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1 V |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - On State (It (AV)) (Max) | 5.1 A |
| Current - On State (It (RMS)) (Max) | 8 A |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Off State (Max) | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 80A @ 60Hz |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

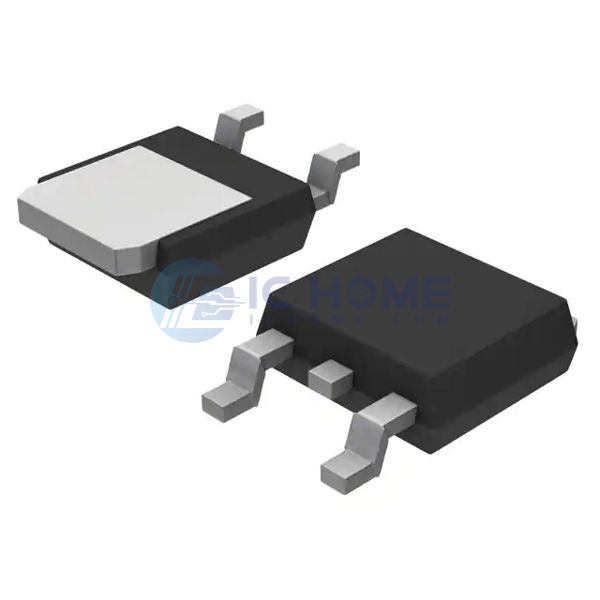

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
