| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 5V |
| Rds On (Max) @ Id, Vgs | 80mOhm @ 25A, 5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 5 V |
| Vgs (Max) | ±15V |
| Input Capacitance (Ciss) (Max) @ Vds | 1260 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 75W (Tj) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

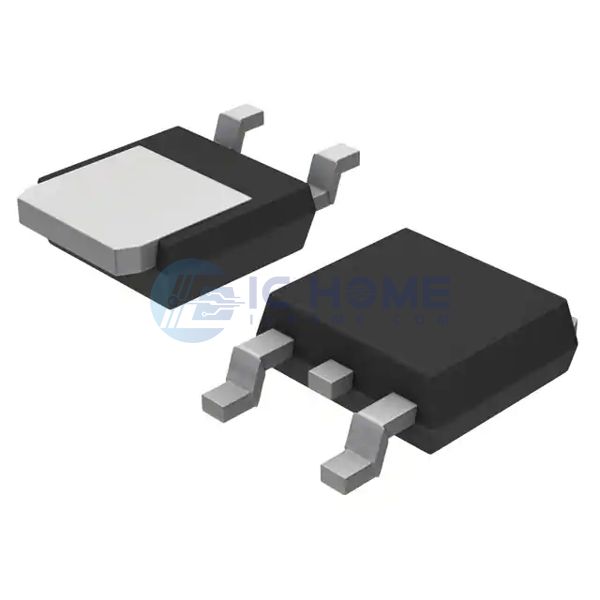

| Supplier Device Package | DPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
