| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 80mOhm @ 3.6A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 4.5 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 200 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |

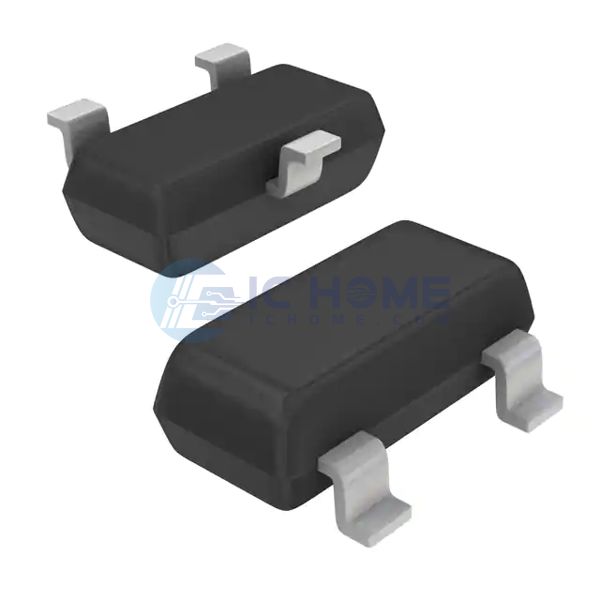

| Supplier Device Package | SOT-23-3 (TO-236) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
