| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 77A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.4mOhm @ 35A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 79.5 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3850 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 72W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |

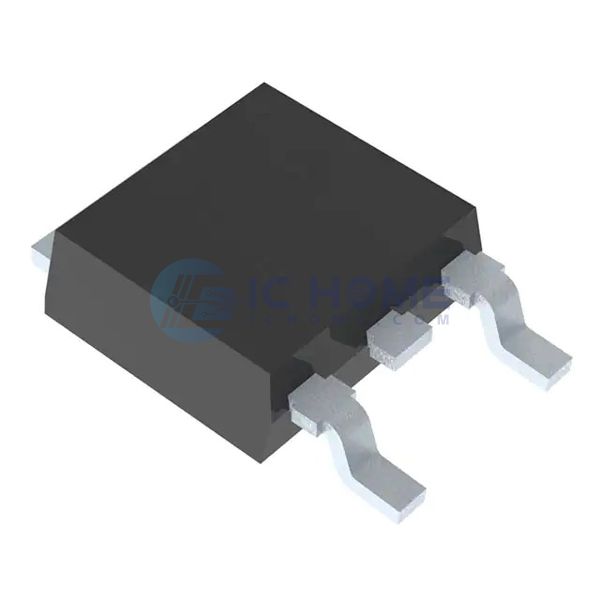

| Supplier Device Package | ATPAK |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
