| Name | Value |
|---|---|
| Product Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | - |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 10µs, 10µs (Max) |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | 2mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 100 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |

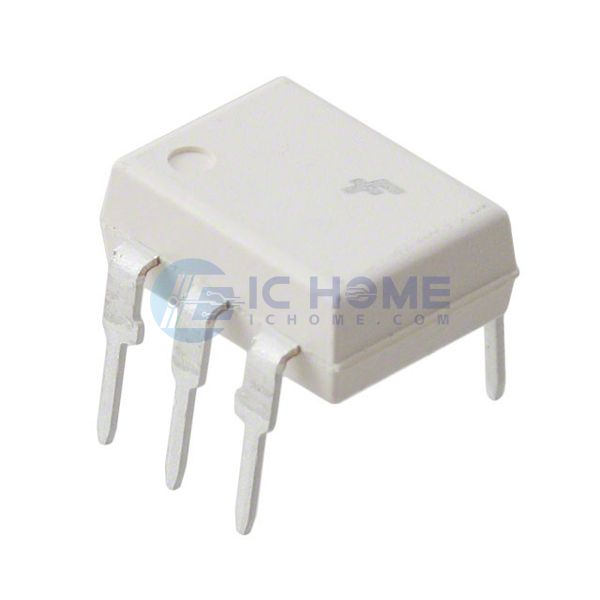

| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
