| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V |
| Current - Continuous Drain (Id) @ 25°C | 65A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 32.5A, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 120 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4900 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 200W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |

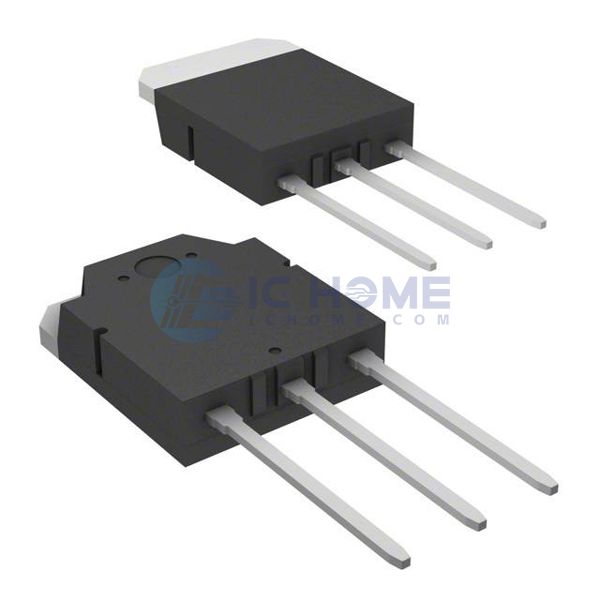

| Supplier Device Package | TO-3P |
| Package / Case | TO-220-3 Full Pack |
