| Name | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 8.9mOhm @ 12.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 28 nC @ 5 V |
| Vgs (Max) | 20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1670 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |

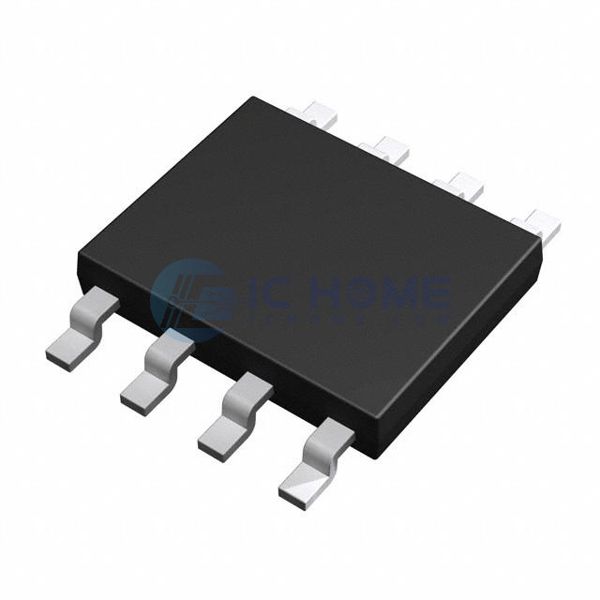

| Supplier Device Package | 8-SOP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
