| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5.4mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 4.5 V |
| Vgs (Max) | ±22V |
| Input Capacitance (Ciss) (Max) @ Vds | 1500 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 50W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

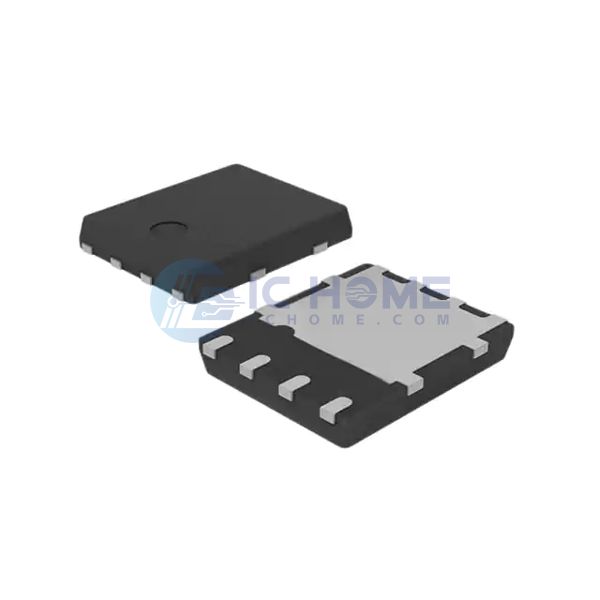

| Supplier Device Package | PowerFlat™ (3.3x3.3) |
| Package / Case | 8-PowerVDFN |
