| Name | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 630 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 700mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | VS-6 (2.9x2.8) |

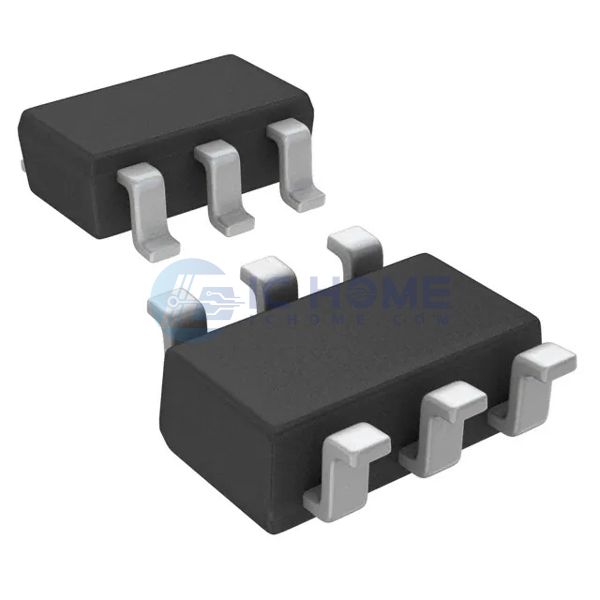

| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
