| Name | Value |
|---|---|
| Product Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 1000VDC |
| Current Transfer Ratio (Min) | 30% @ 10mA |
| Current Transfer Ratio (Max) | 200% @ 10mA |
| Turn On / Turn Off Time (Typ) | 9µs, 6µs (Max) |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 50V |
| Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | 1.2V (Max) |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |

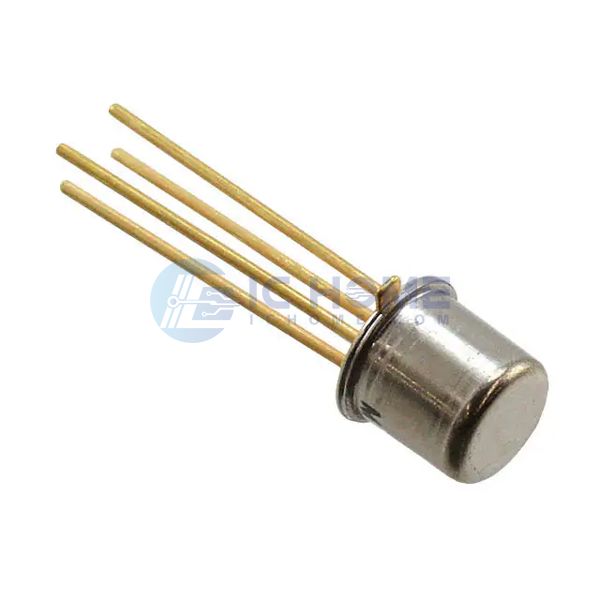

| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Supplier Device Package | TO-72-4 |
