| Name | Value |
|---|---|
| Product Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 5µs, 4µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 60V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 115°C |
| Mounting Type | Surface Mount |

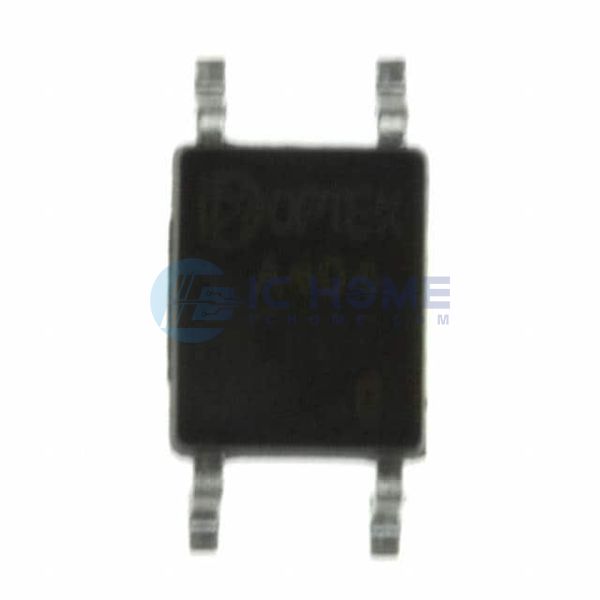

| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP (2.54mm) |
