| Name | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 13900VDC |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | 200% @ 10mA |
| Turn On / Turn Off Time (Typ) | 5µs, 3µs |
| Rise / Fall Time (Typ) | 2.4µs, 2.7µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 32V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V |
| Current - DC Forward (If) (Max) | 75 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 85°C |
| Mounting Type | Through Hole |

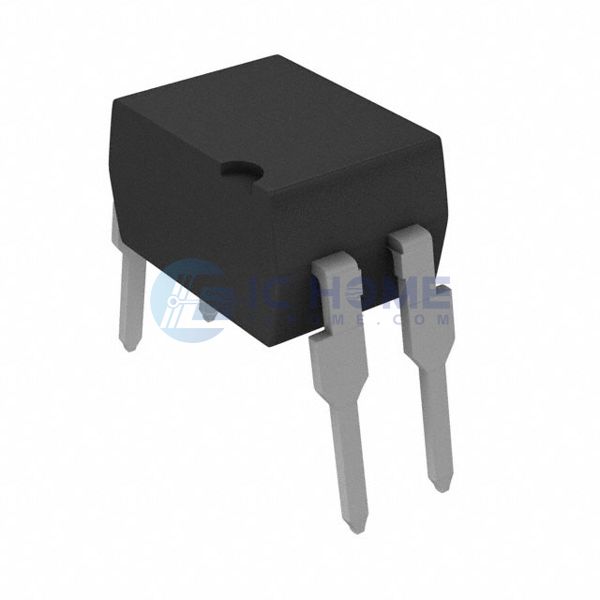

| Package / Case | 4-DIP Module (0.400", 10.16mm) |
| Supplier Device Package | 4-DIP-HV |
