| Name | Value |
|---|---|
| Product Status | Active |

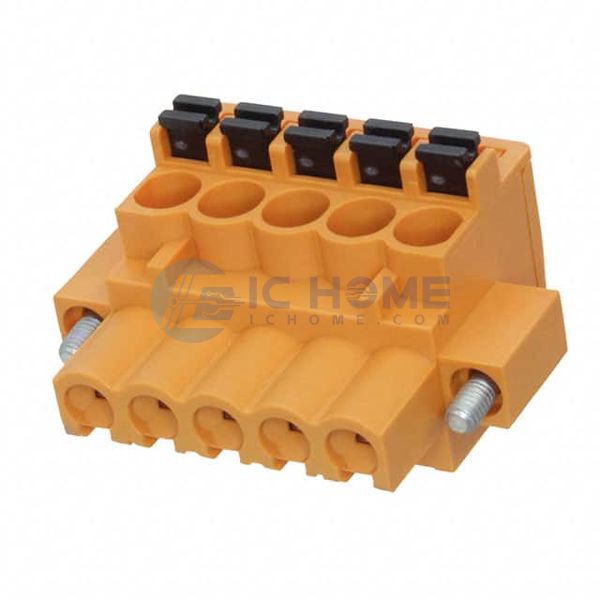

| Type | Plug, Female Sockets |
| Number of Positions | 5 |
| Positions Per Level | 5 |
| Number of Levels | 1 |
| Pitch | 0.200" (5.08mm) |
| Header Orientation | - |
| Plug Wire Entry | 270° |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 24A |
| Voltage - IEC | 400 V |
| Current - UL | 18.5 A |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Color | Orange |
| Operating Temperature | -50°C ~ 100°C |
| Contact Mating Finish | Tin |
| Features | Mounting Flange, Retention Latches (Non-Wire Side) |
